4. Regularized Poisson Regression Model

Regularized Poisson regression is a statistical modeling technique used to predict count data while addressing overfitting through regularization. Count data often follows a Poisson distribution, but standard Poisson regression can need help with high-dimensional data or highly correlated predictors, leading to unstable estimates. Techniques like ridge, lasso, and elastic net add penalty terms to improve interpretability and accuracy. This tutorial introduces how to implement regularized Poisson regression in R. We will first fit the model from scratch to understand the theory and then use the {glmnet} package to apply ridge, lasso, and elastic net Poisson regression. This approach provides theoretical insights and practical skills for applying regularized Poisson regression in various contexts, from academic research to industry applications.

Overview

The Regularized Poisson Regression Model is a variant of Poisson regression used to model count data, where the goal is to estimate the relationship between a set of predictors and a count outcome (e.g., number of events). The regularization and the offset are additional components that refine the model and improve its performance, especially when dealing with complex or noisy data.

The componets Regularized Poisson Regression Model with offset:

1. Poisson Regression:

   • Poisson regression is a type of generalized linear model (GLM) where the outcome variable follows a Poisson distribution. It’s commonly used for modeling count data (e.g., the number of occurrences of an event).
   • The Poisson distribution has the probability mass function:

\[ P(Y = y) = \frac{\lambda^y e^{-\lambda}}{y!}, \quad y = 0, 1, 2, \dots \]

 where $\lambda$ is the expected count (rate parameter), and $Y$ is the random variable representing the count.

• The Poisson regression model assumes that:

  \[ \log(\lambda) = \mathbf{X} \beta \]

  where \(\lambda\) is the expected count, \(\mathbf{X}\) is the matrix of predictor variables, and \(\beta\) is the vector of coefficients to be estimated.

2. Offset:

The offset allows you to adjust for known exposure levels (such as time, area, or population size) that affect the count outcome but are not part of the predictors you want to estimate.

• An offset is a known component in the model that is included in the linear predictor, but its coefficient is fixed (usually set to 1). This is often used when the scale of the response variable is affected by some external factor.

• In a Poisson regression with an offset, the model becomes:

  \[ \log(\lambda) = \mathbf{X} \beta + \text{offset} \]

  where the offset can be any known value or variable that is not estimated during the regression but is important for predicting the count outcome (e.g., the total time at risk, population size, or exposure rate).

3. Regularization:

Regularization helps avoid overfitting, especially in cases where there are many predictors or the model is complex, leading to more stable and interpretable coefficients.

• Regularization refers to adding a penalty term to the loss function in order to prevent overfitting and improve the generalization of the model. For Poisson regression, regularization is typically done using either L1 (Lasso) or L2 (Ridge) regularization:

  • L1 regularization encourages sparsity in the model by penalizing the absolute values of the coefficients.

  • L2 regularization penalizes the squared values of the coefficients, shrinking them toward zero but generally not leading to exact zeros.

The regularized Poisson regression model with an offset can be written as:

\[ \min_{\beta} \left( \sum_{i=1}^n \left( y_i \log(\lambda_i) - \lambda_i \right) + \text{Penalty}(\beta) \right) \]

where \(y_i\) is the observed count for the \(i\)-th observation, and \(\lambda_i\) is the expected count, which depends on the predictors and the offset. The penalty term could represent either L1 or L2 regularization.

Regularized Poisson Model from Scratch

Let’s go through the process of fitting a Poisson model with an offset and four predictors manually in R. Here’s the breakdown:

Create a Data

For this example, we’ll simulate some count data, including four predictors and an offset variable.

# Simulate Data
set.seed(123)
n <- 200  # Number of observations
p <- 5    # Number of predictors

# Simulate predictors
X <- matrix(rnorm(n * p), nrow = n, ncol = p)
colnames(X) <- paste0("X", 1:p)

# True coefficients
beta <- c(0.5, -0.3, 0, 0.8, 0)

# Simulate offset and Poisson outcome
offset <- log(runif(n, 1, 10))  # Offset variable
lambda <- exp(X %*% beta + offset)  # Poisson mean
Y <- rpois(n, lambda)  # Poisson-distributed response

# Combine data into a single dataframe
data <- data.frame(Y, offset, X)
head(data)

   Y    offset          X1         X2          X3          X4         X5
1  4 0.8907948 -0.56047565  2.1988103 -0.07355602  1.07401226  0.3562833
2  2 0.8331885 -0.23017749  1.3124130 -1.16865142 -0.02734697 -0.6580102
3  7 0.8512715  1.55870831 -0.2651451 -0.63474826 -0.03333034  0.8552022
4  0 1.7280932  0.07050839  0.5431941 -0.02884155 -1.51606762  1.1529362
5  9 1.6929415  0.12928774 -0.4143399  0.67069597  0.79038534  0.2762746
6 17 1.8790199  1.71506499 -0.4762469 -1.65054654 -0.21073418  0.1441047

Regularized Poisson Regression Function

# Regularized Poisson Regression Function
regularized_poisson <- function(X, Y, offset, alpha, lambda, max_iter = 1000, tol = 1e-6) {
  n <- nrow(X)
  p <- ncol(X)
  beta <- rep(0, p)  # Initialize coefficients
  for (iter in 1:max_iter) {
    # Linear predictor
    eta <- X %*% beta + offset
    mu <- exp(eta)  # Predicted Poisson mean

    # Gradient of the log-likelihood
    grad <- t(X) %*% (Y - mu) / n

    # Add regularization gradient
    grad <- grad - lambda * (alpha * sign(beta) + 2 * (1 - alpha) * beta)

    # Update coefficients
    beta_new <- beta + 0.01 * grad  # Learning rate = 0.01

    # Check for convergence
    if (sum(abs(beta_new - beta)) < tol) {
      break
    }
    beta <- beta_new
  }
  return(beta)
}

Cross-Validation Function

# Cross-Validation Function
cross_validate <- function(X, Y, offset, alpha_values, lambda_values, folds = 5) {
  n <- nrow(X)
  fold_indices <- sample(rep(1:folds, length.out = n))

  results <- expand.grid(alpha = alpha_values, lambda = lambda_values, RMSE = NA)

  for (i in 1:nrow(results)) {
    alpha <- results$alpha[i]
    lambda <- results$lambda[i]

    rmse_fold <- numeric(folds)

    for (fold in 1:folds) {
      train_idx <- which(fold_indices != fold)
      test_idx <- which(fold_indices == fold)

      X_train <- X[train_idx, ]
      Y_train <- Y[train_idx]
      offset_train <- offset[train_idx]

      X_test <- X[test_idx, ]
      Y_test <- Y[test_idx]
      offset_test <- offset[test_idx]

      # Fit model
      beta <- regularized_poisson(X_train, Y_train, offset_train, alpha, lambda)

      # Predict on test set
      eta_test <- X_test %*% beta + offset_test
      mu_test <- exp(eta_test)

      # Calculate RMSE
      rmse_fold[fold] <- sqrt(mean((Y_test - mu_test)^2))
    }

    results$RMSE[i] <- mean(rmse_fold)
  }

  return(results)
}

Cross-Validation for best parameters

# Define alpha and lambda values
alpha_values <- c(0, 0.5, 1)  # Ridge (0), Elastic Net (0.5), Lasso (1)
lambda_values <- seq(0.01, 1, length.out = 10)

# Cross-validate to find the best parameters
cv_results <- cross_validate(X, Y, offset, alpha_values, lambda_values)

# Best parameters for each model
ridge_params <- cv_results[cv_results$alpha == 0, ][which.min(cv_results$RMSE), ]
lasso_params <- cv_results[cv_results$alpha == 1, ][which.min(cv_results$RMSE), ]
elastic_net_params <- cv_results[cv_results$alpha == 0.5, ][which.min(cv_results$RMSE), ]

Fit ridge, lasso, and elastic net models

# Fit final models
ridge_model <- regularized_poisson(X, Y, offset, ridge_params$alpha, ridge_params$lambda)
lasso_model <- regularized_poisson(X, Y, offset, lasso_params$alpha, lasso_params$lambda)
elastic_net_model <- regularized_poisson(X, Y, offset, elastic_net_params$alpha, elastic_net_params$lambda)

Evaluate Model Performance

# Evaluate Model Performance
evaluate_model <- function(beta, X, Y, offset) {
  eta <- X %*% beta + offset
  mu <- exp(eta)
  RMSE <- sqrt(mean((Y - mu)^2))
  MAE <- mean(abs(Y - mu))
  return(list(RMSE = RMSE, MAE = MAE))
}

ridge_perf <- evaluate_model(ridge_model, X, Y, offset)
lasso_perf <- evaluate_model(lasso_model, X, Y, offset)
elastic_net_perf <- evaluate_model(elastic_net_model, X, Y, offset)

# Print Results
cat("Performance Metrics:\n")

Performance Metrics:

print(list(
  Ridge = ridge_perf,
  Lasso = lasso_perf,
  ElasticNet = elastic_net_perf
))

$Ridge
$Ridge$RMSE
[1] 3.031407

$Ridge$MAE
[1] 2.045412


$Lasso
$Lasso$RMSE
[1] 3.029161

$Lasso$MAE
[1] 2.033108


$ElasticNet
$ElasticNet$RMSE
[1] 3.028872

$ElasticNet$MAE
[1] 2.036921

Regularized Poisson Model in R

We will use the glmnet() function from the {glmnet} package to fit a regularized Poisson regression model with an offset and four predictors. The regularization helps prevent overfitting and improves the model’s generalization performance.

Install Required R Packages

To fit a Regularized Logistic Model R, we will use {glmnet} package. The {glmnet} package provides efficient functions for fitting generalized linear models (GLMs) with L1 (Lasso) and L2 (Ridge) regularization. The package is widely used for regression and classification tasks, especially when dealing with high-dimensional data or multicollinearity.

Following R packages are required to run this notebook. If any of these packages are not installed, you can install them using the code below:

packages <- c('tidyverse',
     'plyr',
         'rstatix',
         'ggeffects',
         'patchwork',
         'metrica',
         'Metrics',
         'glmnet',
         'ggpmisc'

        )

#| warning: false
#| error: false

# Install missing packages
new_packages <- packages[!(packages %in% installed.packages()[,"Package"])]
if(length(new_packages)) install.packages(new_packages)

# Verify installation
cat("Installed packages:\n")
print(sapply(packages, requireNamespace, quietly = TRUE))

Load Pacakges

# Load packages with suppressed messages
invisible(lapply(packages, function(pkg) {
  suppressPackageStartupMessages(library(pkg, character.only = TRUE))
}))

# Check loaded packages
cat("Successfully loaded packages:\n")

Successfully loaded packages:

print(search()[grepl("package:", search())])

 [1] "package:ggpmisc"   "package:ggpp"      "package:glmnet"
 [4] "package:Matrix"    "package:Metrics"   "package:metrica"
 [7] "package:patchwork" "package:ggeffects" "package:rstatix"
[10] "package:plyr"      "package:lubridate" "package:forcats"
[13] "package:stringr"   "package:dplyr"     "package:purrr"
[16] "package:readr"     "package:tidyr"     "package:tibble"
[19] "package:ggplot2"   "package:tidyverse" "package:stats"
[22] "package:graphics"  "package:grDevices" "package:utils"
[25] "package:datasets"  "package:methods"   "package:base"

Data

The County-level age-adjusted number and rate of diabetes patients, prevalence of obesity, physical inactivity and Food environment index for the year 2016-2020 were obtained from United States Diabetes Surveillance System (USDSS).

Diagnosed Diabetes

Full data set is available for download from my Dropbox or from my Github accounts.

Dataset contains five years average (2016-2020) of following variables :

1. Diabetes_count - Diabetes number per county (Diabetes Surveillance System (USDSS))

2. Diabetes_per - Diabetes number per county (Diabetes Surveillance System (USDSS))

3. Urban_Rural - Urban Rural County (USDA)

4. PPO_total - Total population per county (US Census)

5. Obesity - % obesity per county (Behavioral Risk Factor Surveillance System)

6. Physical_Inactivity: % adult access to exercise opportunities (County Health Ranking)

7. SVI - Level of social vulnerability in the county relative to other counties in the nation or within the state.ocial vulnerability refers to the potential negative effects on communities caused by external stresses on human health. The CDC/ATSDR Social vulnerability Index (SVI) ranks all US counties on 15 social factors, including poverty, lack of vehicle access, and crowded housing, and groups them into four related themes. ( CDC/ATSDR Social Vulnerability Index (SVI))

8. Food_Env_Index: Measure of access to healthy food. The Food Environment Index ranges from a scale of 0 (worst) to 10 (best) and equally weights two indicators: 1) Limited access to healthy foods based on distance an individual lives from a grocery store or supermarket, locations for healthy food purchases in most communities; and 2) Food insecurity defined as the inability to access healthy food because of cost barriers.County Health Ranking

We will use read_csv() function of {readr} package to import data as a {tidy} data.

# load data
mf<-read_csv("https://github.com/zia207/r-colab/raw/main/Data/Regression_analysis/county_data_2016_2020.csv")

Rows: 3107 Columns: 15
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr  (3): State, County, Urban_Rural
dbl (12): FIPS, X, Y, POP_Total, Diabetes_count, Diabetes_per, Obesity, Acce...

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

# select variables
df<-mf |>
  dplyr::select(Diabetes_per,
                Obesity,
                Physical_Inactivity,
                Access_Excercise,
                Food_Env_Index,
                SVI,
                Urban_Rural,
                POP_Total
                ) |>
  glimpse()

Rows: 3,107
Columns: 8
$ Diabetes_per        <dbl> 9.24, 8.48, 11.72, 10.08, 10.26, 9.06, 11.80, 13.2…
$ Obesity             <dbl> 29.22, 28.94, 29.34, 29.44, 30.10, 19.86, 30.38, 3…
$ Physical_Inactivity <dbl> 26.42, 22.86, 23.72, 25.38, 24.76, 18.58, 28.66, 2…
$ Access_Excercise    <dbl> 70.8, 72.2, 49.8, 30.6, 24.6, 19.6, 48.0, 51.4, 62…
$ Food_Env_Index      <dbl> 6.9, 7.7, 5.5, 7.6, 8.1, 4.3, 6.5, 6.3, 6.4, 7.7, …
$ SVI                 <dbl> 0.5130, 0.3103, 0.9927, 0.8078, 0.5137, 0.8310, 0.…
$ Urban_Rural         <chr> "Urban", "Urban", "Rural", "Urban", "Urban", "Rura…
$ POP_Total           <dbl> 55707.0, 218346.8, 25078.2, 22448.2, 57852.4, 1017…

# data processing
df$Diabetes_per<-as.integer(df$Diabetes_per)
df$Urban_Rural<-as.factor(df$Urban_Rural)

Split Data

We will use the ddply() function of the {plyr} package to split soil carbon datainto homogeneous subgroups using stratified random sampling. This method involves dividing the population into strata and taking random samples from each stratum to ensure that each subgroup is proportionally represented in the sample. The goal is to obtain a representative sample of the population by adequately representing each stratum.

seeds = 11076
tr_prop = 0.70

df$log_POP_Total<-log(df$POP_Total)
# training data (70% data)
train= ddply(df,.(Urban_Rural),
                 function(., seed) { set.seed(seed); .[sample(1:nrow(.), trunc(nrow(.) * tr_prop)), ] }, seed = 101)
test = ddply(df, .(Urban_Rural),
            function(., seed) { set.seed(seed); .[-sample(1:nrow(.), trunc(nrow(.) * tr_prop)), ] }, seed = 101)

Create x and y

You need to create two objects:

• y for storing the outcome variable
• x for holding the predictor variables. This should be created using the function model.matrix() allowing to automatically transform any qualitative variables (if any) into dummy variables, which is important because glmnet() can only take numerical, quantitative inputs. After creating the model matrix, we remove the intercept component at index = 1.

df.train<-train[,-8]
# Predictor variables
x.train <- model.matrix(Diabetes_per ~., df.train)[,-1]
# Outcome variable
y.train <-df.train$Diabetes_per
# offset
m_offset <- df.train$log_POP_Total

Ridge Regression

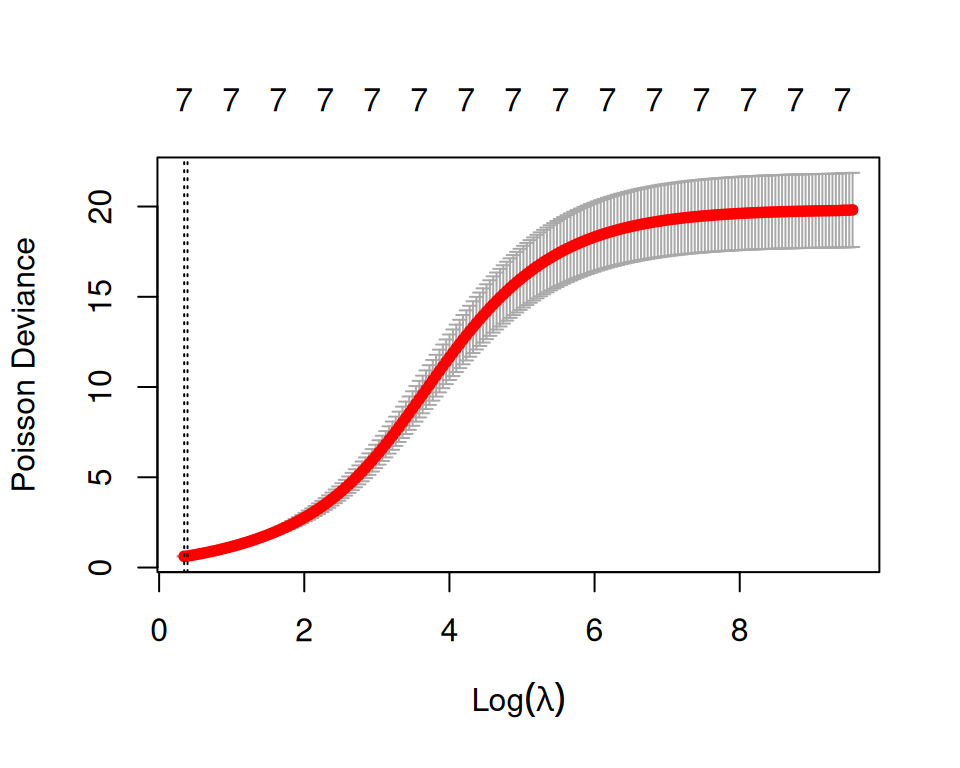

Cross-validation for the best lambda

Now we can apply cv.glmnet() function for cross-validation to choose the best lambda (regularization parameter). For example, suppose we designate \(α\)=0 for ridge regression and specify nlambda as 200. This implies that the model fit will be calculated solely for 200 \(λ\) values.

We specify family = poisson" to indicate that we want to fit a Poisson regression model. Here we model the diabetes rate per county, The offset variable, here is log population per county need to be defined in model. This offset variable adjusts for the differing number of diabetes patients in different population levels per county. `

# cross validation
ridge.cv <- cv.glmnet(x= x.train,
                       y= y.train,
                       type.measure="deviance",
                       nfold = 5,
                       alpha=0,
                       offset = m_offset,
                       family = "poisson",
                       nlambda=200,  standardize = TRUE)

Printing the resulting object gives some basic information on the cross-validation performed:

print(ridge.cv)

Call:  cv.glmnet(x = x.train, y = y.train, offset = m_offset, type.measure = "deviance",      nfolds = 5, alpha = 0, family = "poisson", nlambda = 200,      standardize = TRUE)

Measure: Poisson Deviance

    Lambda Index Measure      SE Nonzero
min  1.412   200  0.6200 0.02666       7
1se  1.479   199  0.6368 0.03003       7

We can plot ridge.cv object to see how each tested lambda value performed:

plot(ridge.cv)

The plot shows the cross-validation error based on the logarithm of lambda. The dashed vertical line on the left indicates that the optimal logarithm of lambda is around -2, which minimizes the prediction error. This lambda value will provide the most accurate model. The exact value of lambda can be viewed as follow:

ridge.cv$lambda.min

[1] 1.412238

Generally, the purpose of regularization is to balance accuracy and simplicity. This means, a model with the smallest number of predictors that also gives a good accuracy. To this end, the function cv.glmnet() finds also the value of lambda that gives the simplest model but also lies within one standard error of the optimal value of lambda. This value is called lambda.1se.

Fit ridge regression

Now Fit the final model with the best “lambda”:

# fit ridge regression
ridge.fit <-  glmnet(x= x.train,
                       y= y.train,
                       alpha=0,
                       lambda = ridge.cv$lambda.1se,
                       ffset = m_offset,
                       family = "poisson",
                       nlambda=200,  standardize = TRUE)

# Display regression coefficients
coef(ridge.fit, s=1 )

8 x 1 sparse Matrix of class "dgCMatrix"
                               s1
(Intercept)          1.3866962254
Obesity              0.0119326501
Physical_Inactivity  0.0162296244
Access_Excercise    -0.0007277648
Food_Env_Index      -0.0226390107
SVI                  0.1325479326
Urban_RuralUrban     0.0170014361
log_POP_Total        0.0151909309

Prediction at test data

The predict() function will be used to predict the number of diabetes patients the test counties. This will help to validate the accuracy of the these regression model.

df.test<-train[,-8]
# Make predictions on the test data
x.test <- model.matrix(Diabetes_per ~., df.train)[,-1]
# Outcome variable
y.test <-df.test$Diabetes_per

ridge.Diabetes<-ridge.fit  |>
  predict(x.test, type="response")  |>  as.vector()
ridge.pred<-as.data.frame(cbind("Obs_Diabetes" = y.test, "Pred_Diabetes "=ridge.Diabetes))
ridge.pred$Obs_Diabetes<-as.numeric(ridge.pred$Obs_Diabetes)
ridge.pred$Pred_Diabetes<-as.numeric(ridge.pred$Pred_Diabetes)
glimpse(ridge.pred)

Rows: 2,173
Columns: 3
$ Obs_Diabetes     <dbl> 8, 6, 8, 12, 9, 7, 7, 6, 8, 7, 8, 7, 8, 6, 8, 6, 7, 1…
$ `Pred_Diabetes ` <dbl> 6.873759, 5.876107, 7.374394, 11.075907, 8.244261, 6.…
$ Pred_Diabetes    <dbl> 6.873759, 5.876107, 7.374394, 11.075907, 8.244261, 6.…

Model performance metrics

calculate_metrics <- function(observed, predicted) {
  # Ensure inputs are numeric vectors
  observed <- as.numeric(observed)
  predicted <- as.numeric(predicted)

  # Compute metrics
  mse <- mean((observed - predicted)^2)
  rmse <- sqrt(mse)
  mae <- mean(abs(observed - predicted))
  medae <- median(abs(observed - predicted))
  r2 <- 1 - sum((observed - predicted)^2) / sum((observed - mean(observed))^2)

  # Return results as a named list
  metrics <- list(
    RMSE = rmse,
    MAE = mae,
    MSE = mse,
    MedAE = medae,
    R2 = r2
  )
  return(metrics)
}

calculate_metrics(ridge.pred$Obs_Diabetes, ridge.pred$Pred_Diabetes)

$RMSE
[1] 0.8476521

$MAE
[1] 0.6653399

$MSE
[1] 0.7185141

$MedAE
[1] 0.5527719

$R2
[1] 0.724833

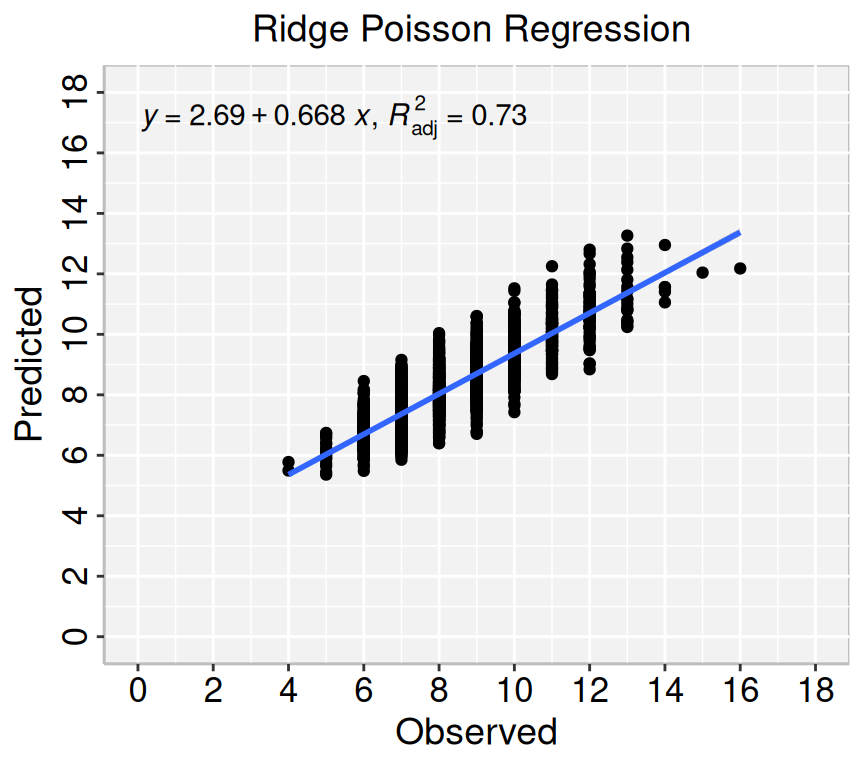

1:1 Plot of Predicted vs Observed values

We can plot observed and predicted values with fitted regression line with ggplot2

formula<-y~x
# Lasso regression
p1=ggplot(ridge.pred, aes(Obs_Diabetes, Pred_Diabetes)) +
  geom_point() +
  geom_smooth(method = "lm")+
  stat_poly_eq(use_label(c("eq", "adj.R2")), formula = formula) +
  ggtitle("Ridge Poisson Regression ") +
  xlab("Observed") + ylab("Predicted") +
  scale_x_continuous(limits=c(0,18), breaks=seq(0, 18, 2))+
  scale_y_continuous(limits=c(0,18), breaks=seq(0, 18, 2)) +
  theme(
    panel.background = element_rect(fill = "grey95",colour = "gray75",size = 0.5, linetype = "solid"),
    axis.line = element_line(colour = "grey"),
    plot.title = element_text(size = 14, hjust = 0.5),
    axis.title.x = element_text(size = 14),
    axis.title.y = element_text(size = 14),
    axis.text.x=element_text(size=13, colour="black"),
    axis.text.y=element_text(size=13,angle = 90,vjust = 0.5, hjust=0.5, colour='black'))
print(p1)

Lasso Regression

Cross-validation for the best lambda

Now we can apply cv.glmnet() function for cross-validation to choose the best lambda (regularization parameter). For example, suppose we designate \(α\)=1 for lasso regression and specify nlambda as 200. This implies that the model fit will be calculated solely for 200 \(λ\) values.

We specify family = poisson" to indicate that we want to fit a Poisson regression model. Here we model the diabetes rate per county, The offset variable, here is log population per county need to be defined in model. This offset variable adjusts for the differing number of diabetes patients in different population levels per county. `

# cross validation
lasso.cv <- cv.glmnet(x= x.train,
                       y= y.train,
                       type.measure="deviance",
                       nfold = 5,
                       alpha=1,
                       offset = m_offset,
                       family = "poisson",
                       nlambda=200, standardize = TRUE)

Printing the resulting object gives some basic information on the cross-validation performed:

print(lasso.cv)

Call:  cv.glmnet(x = x.train, y = y.train, offset = m_offset, type.measure = "deviance",      nfolds = 5, alpha = 1, family = "poisson", nlambda = 200,      standardize = TRUE)

Measure: Poisson Deviance

     Lambda Index Measure       SE Nonzero
min 0.08687   111 0.08973 0.004294       6
1se 0.12010   104 0.09358 0.004807       6

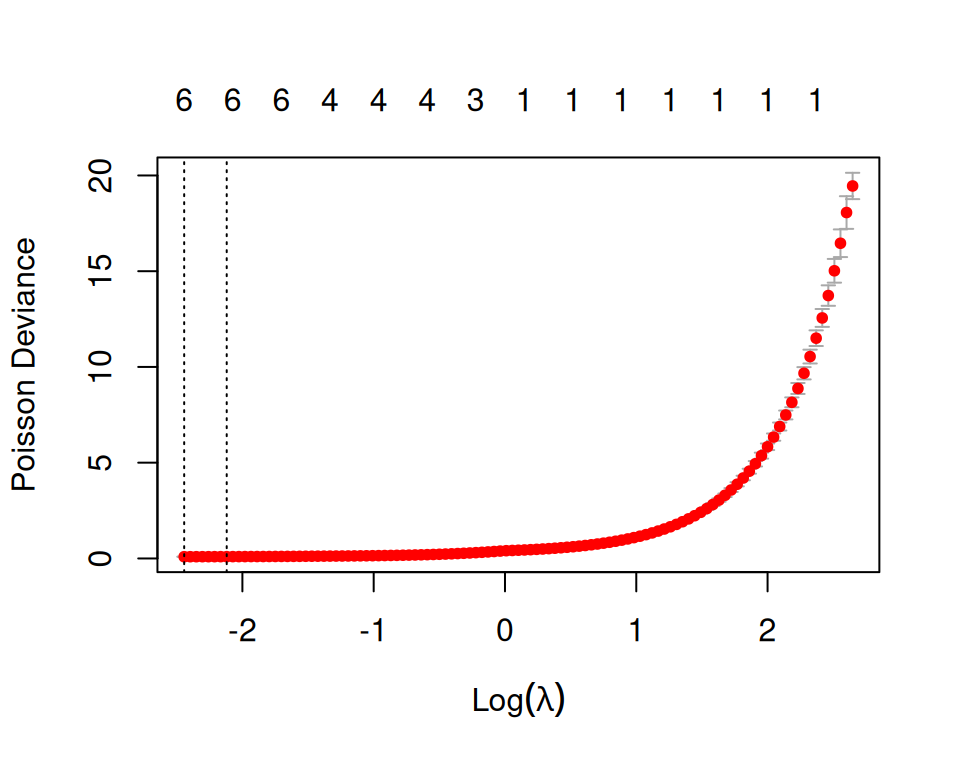

We can plot lasso.cv object to see how each tested lambda value performed:

plot(lasso.cv)

lasso.cv$lambda.min

[1] 0.08686656

Generally, the purpose of regularization is to balance accuracy and simplicity. This means, a model with the smallest number of predictors that also gives a good accuracy. To this end, the function cv.glmnet() finds also the value of lambda that gives the simplest model but also lies within one standard error of the optimal value of lambda. This value is called lasso.1se.

Fit lasso regression

Now Fit the final model with the best “lambda”:

# fit ridge regression
lasso.fit <-  glmnet(x= x.train,
                       y= y.train,
                       alpha=1,
                       lambda = lasso.cv$lambda.1se,
                       ffset = m_offset,
                       family = "poisson",
                       nlambda=200,
                       standardize = TRUE)

# Display regression coefficients
coef(lasso.fit, s=1 )

8 x 1 sparse Matrix of class "dgCMatrix"
                              s1
(Intercept)          1.357230195
Obesity              0.010718046
Physical_Inactivity  0.018882827
Access_Excercise     .
Food_Env_Index      -0.007952280
SVI                  0.143520621
Urban_RuralUrban     .
log_POP_Total        0.001550711

Prediction at test data

The predict() function will be used to predict the number of diabetes patients the test counties. This will help to validate the accuracy of the these regression model.

df.test<-train[,-8]
# Make predictions on the test data
x.test <- model.matrix(Diabetes_per ~., df.train)[,-1]
# Outcome variable
y.test <-df.test$Diabetes_per

lasso.Diabetes<-lasso.fit  |>
  predict(x.test, type="response")  |>  as.vector()

lasso.pred<-as.data.frame(cbind("Obs_Diabetes" = y.test, "Pred_Diabetes "=lasso.Diabetes))
lasso.pred$Obs_Diabetes<-as.numeric(lasso.pred$Obs_Diabetes)
lasso.pred$Pred_Diabetes<-as.numeric(lasso.pred$Pred_Diabetes)
glimpse(ridge.pred)

Rows: 2,173
Columns: 3
$ Obs_Diabetes     <dbl> 8, 6, 8, 12, 9, 7, 7, 6, 8, 7, 8, 7, 8, 6, 8, 6, 7, 1…
$ `Pred_Diabetes ` <dbl> 6.873759, 5.876107, 7.374394, 11.075907, 8.244261, 6.…
$ Pred_Diabetes    <dbl> 6.873759, 5.876107, 7.374394, 11.075907, 8.244261, 6.…

Model performance metrics

# Model performance metrics
calculate_metrics(lasso.pred$Obs_Diabetes, lasso.pred$Pred_Diabetes)

$RMSE
[1] 0.8797863

$MAE
[1] 0.6871901

$MSE
[1] 0.7740239

$MedAE
[1] 0.553532

$R2
[1] 0.7035746

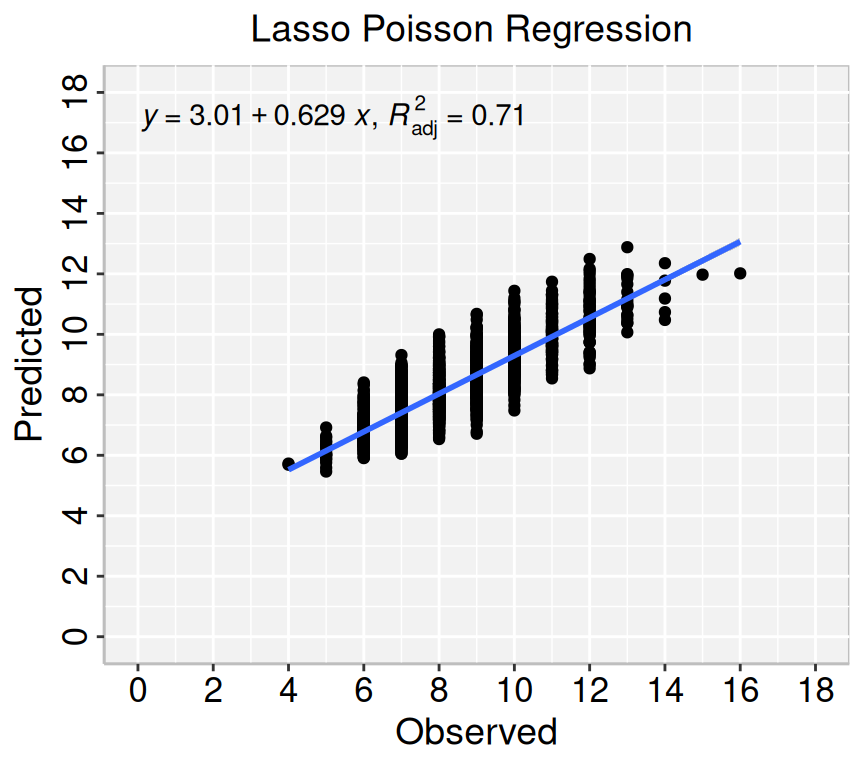

1:1 Plot of Predicted vs Observed values

We can plot observed and predicted values with fitted regression line with ggplot2

formula<-y~x
# Lasso regression
p2=ggplot(lasso.pred, aes(Obs_Diabetes, Pred_Diabetes)) +
  geom_point() +
  geom_smooth(method = "lm")+
  stat_poly_eq(use_label(c("eq", "adj.R2")), formula = formula) +
  ggtitle("Lasso Poisson Regression ") +
  xlab("Observed") + ylab("Predicted") +
  scale_x_continuous(limits=c(0,18), breaks=seq(0, 18, 2))+
  scale_y_continuous(limits=c(0,18), breaks=seq(0, 18, 2)) +
  theme(
    panel.background = element_rect(fill = "grey95",colour = "gray75",size = 0.5, linetype = "solid"),
    axis.line = element_line(colour = "grey"),
    plot.title = element_text(size = 14, hjust = 0.5),
    axis.title.x = element_text(size = 14),
    axis.title.y = element_text(size = 14),
    axis.text.x=element_text(size=13, colour="black"),
    axis.text.y=element_text(size=13,angle = 90,vjust = 0.5, hjust=0.5, colour='black'))
print(p2)

Elastic Net Regression

Elastic Net regression is a combination of L1 (LASSO) and L2 (Ridge) regularization. It provides a balance between feature selection and coefficient shrinkage. The {glmne}` package in R provides efficient functions for fitting Elastic Net regression models.

Cross Validation of the best Elastic Net regression

We can set up our model very similarly to our ridge function. We simply need to change the alphaargument to a value between 0 and 1 and do K-fold cross-validation:

# Define alpha values for Lasso, Ridge, and Elastic Net
alpha_values <- seq(0, 1, by = 0.1)

# Lambda will be generated automatically, but you can also define it manually:
lambda_values <- 10^seq(-4, 1, length.out = 100) # Logarithmic scale

# Cross-validation
results <- list()
for (alpha in alpha_values) {
  cv_model <- cv.glmnet(
    x = x.train,
    y = y.train,
    alpha = alpha,
    lambda = lambda_values,
    nfolds = 5, # 5-fold cross-validation
    standardize = TRUE, # Standardizes the predictors by default
    offset = m_offset,
    family = "poisson"
  )

  # Store results
  results[[paste("alpha=", alpha)]] <- list(
    alpha = alpha,
    best_lambda = cv_model$lambda.min,
    cv_model = cv_model
  )
}

best_result <- NULL
min_mse <- Inf

for (res in results) {
  mse <- min(res$cv_model$cvm) # Mean squared error
  if (mse < min_mse) {
    min_mse <- mse
    best_result <- res
  }
}

# Best model
cat("Best alpha:", best_result$alpha, "\n")

Best alpha: 0.5

cat("Best lambda:", best_result$best_lambda, "\n")

Best lambda: 1e-04

Fit Elastic Net regression

enet.fit  <- glmnet(
  x = x.train,
  y = y.train,
  alpha = best_result$alpha,
  lambda = best_result$best_lambda,
  standardize = TRUE,
  family = "poisson",
)

Prediction at Test Data

Now, we will test this model on our test dataset by calculating the model-predicted values for the test dataset

df.test<-train[,-8]
# Make predictions on the test data
x.test <- model.matrix(Diabetes_per ~., df.train)[,-1]
# Outcome variable
y.test <-df.test$Diabetes_per

enet.Diabetes<-enet.fit   |>
  predict(x.test,  type="response")  |>  as.vector()

enet.pred<-as.data.frame(cbind("Obs_Diabetes" = y.test, "Pred_Diabetes "=enet.Diabetes))
enet.pred$Obs_Diabetes<-as.numeric(enet.pred$Obs_Diabetes)
enet.pred$Pred_Diabetes<-as.numeric(enet.pred$Pred_Diabetes)
glimpse(enet.pred)

Rows: 2,173
Columns: 3
$ Obs_Diabetes     <dbl> 8, 6, 8, 12, 9, 7, 7, 6, 8, 7, 8, 7, 8, 6, 8, 6, 7, 1…
$ `Pred_Diabetes ` <dbl> 6.749272, 5.722855, 7.298784, 11.431175, 8.225180, 6.…
$ Pred_Diabetes    <dbl> 6.749272, 5.722855, 7.298784, 11.431175, 8.225180, 6.…

calculate_metrics(enet.pred$Obs_Diabetes, enet.pred$Pred_Diabetes)

$RMSE
[1] 0.8378871

$MAE
[1] 0.6601146

$MSE
[1] 0.7020547

$MedAE
[1] 0.5465222

$R2
[1] 0.7311364

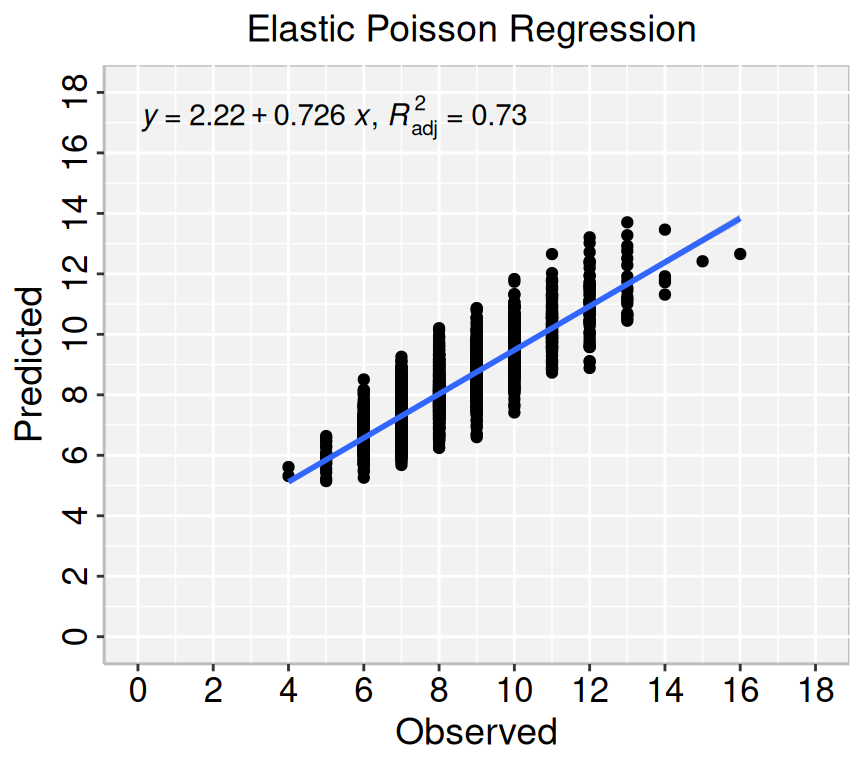

1:1 Plot of Predicted vs Observed values

We can plot observed and predicted values with fitted regression line with ggplot2

formula<-y~x
# Esatic Net regression
p3=ggplot(enet.pred, aes(Obs_Diabetes, Pred_Diabetes)) +
  geom_point() +
  geom_smooth(method = "lm")+
  stat_poly_eq(use_label(c("eq", "adj.R2")), formula = formula) +
  ggtitle("Elastic Poisson Regression ") +
  xlab("Observed") + ylab("Predicted") +
  scale_x_continuous(limits=c(0,18), breaks=seq(0, 18, 2))+
  scale_y_continuous(limits=c(0,18), breaks=seq(0, 18, 2)) +
  theme(
    panel.background = element_rect(fill = "grey95",colour = "gray75",size = 0.5, linetype = "solid"),
    axis.line = element_line(colour = "grey"),
    plot.title = element_text(size = 14, hjust = 0.5),
    axis.title.x = element_text(size = 14),
    axis.title.y = element_text(size = 14),
    axis.text.x=element_text(size=13, colour="black"),
    axis.text.y=element_text(size=13,angle = 90,vjust = 0.5, hjust=0.5, colour='black'))
print(p3)

Summary and Conclusion

In this tutorial, we explored the concept of Regularized Poisson Regression and its application for modeling count data in R. The main objectives were to understand the theoretical foundations of regularization and implement it using a manual approach and the {glmnet} package. By mastering the theoretical and practical aspects of regularized Poisson regression, you will be well-equipped to apply these techniques effectively across various contexts, from research to industry. Whether you are focused on predictive modeling, feature selection, or addressing overfitting, regularization offers robust solutions for analyzing count data.

References

1. Poisson frequency models in glmnet
